BEWARE 32 Channel NVR with 4 SATA | 12MP IP Camera 4K Network Video Recorder

Recorders

BEWARE 32 Channel NVR with 4 SATA | 12MP IP Camera 4K Network Video Recorder

₹40000 ₹17800

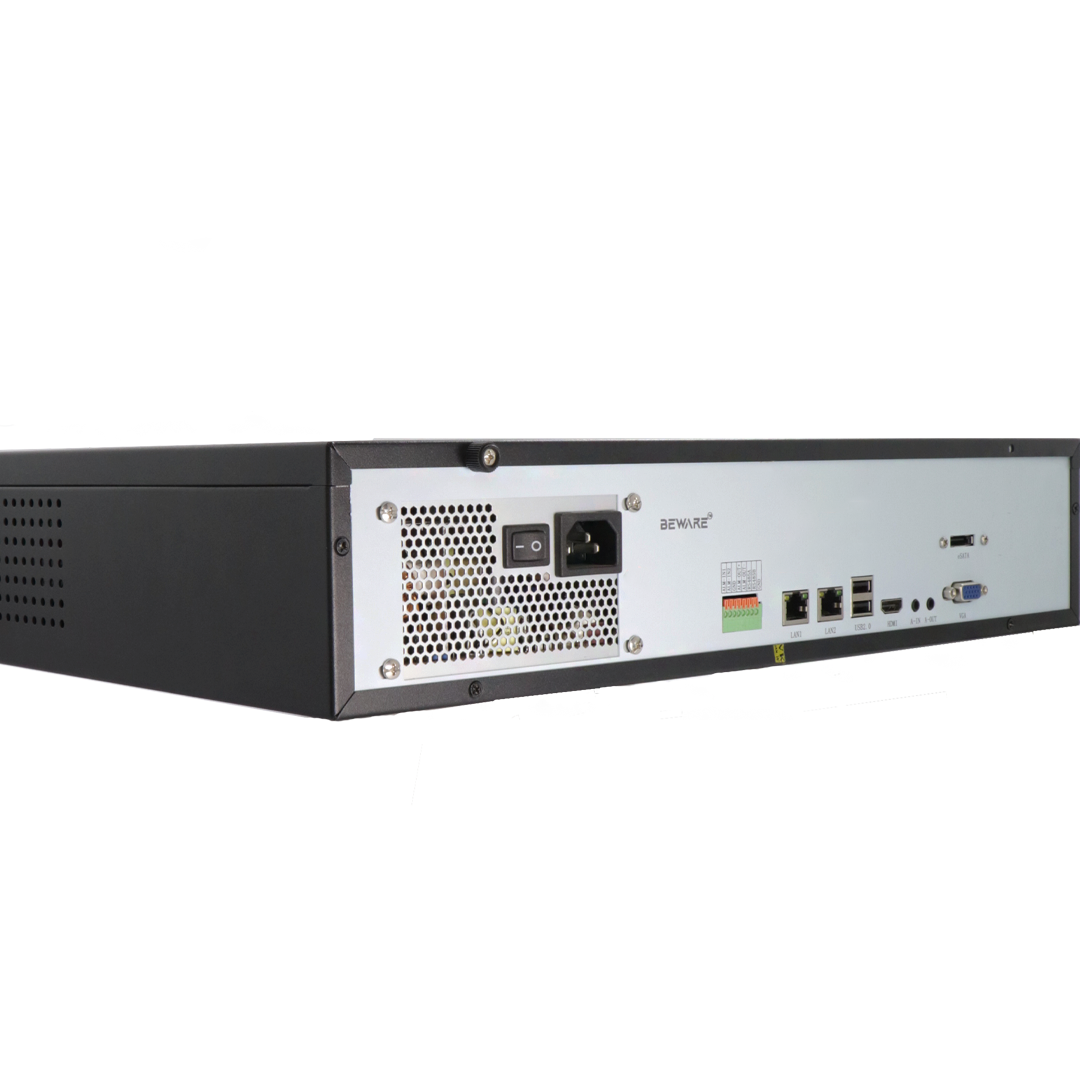

The BEWARE 32 Channel NVR - 4 SATA is a professional network video recorder designed for large-scale IP surveillance systems. Supporting up to 32 IP cameras with 12MP resolution, advanced H.265/H.264 compression, and 4 SATA HDD bays, it ensures reliable high-capacity recording. Ideal for offices, warehouses, malls, factories, and enterprise security networks.

Brand :BEWARE
Product SKU :BW-2601-32M-HIN4
Category :Recorders
Availability : In Stock

Seller :BLUEBETELS PRIVATE LIMITED
Tag :
Top Selling Products, New Arrivals, Most Viewed
DataSheet :

Description
Specification
Request Information
FAQs

32 Channel IP Camera Support - Connect up to 32 IP cameras with up to 12MP recording resolution for large surveillance installations.
Massive Storage with 4 SATA HDD Bays - Supports 4 SATA hard drives up to 8TB each, offering up to 32TB total storage capacity.
4K Ultra HD Video Output - Supports 4K HDMI display output for high-resolution monitoring and playback.
Smart Video Analytics (VCA) - Includes intrusion detection, line crossing detection, people counting, object detection, and video abnormal alerts.
Dual Gigabit LAN with Remote Monitoring - Provides fast network connectivity and remote viewing via mobile apps and PC software.

System

Operating System: Embedded Linux
User Interface: Smart UI with drag-and-drop navigation
Plug & Play: Supported

Video

Video Input: 32 Channel IP Cameras
Video Compression: H.265 / H.265+ / H.264 / H.264+ / H.264B
Maximum Resolution: Up to 12MP

Encoding Capacity

4CH @ 4K: Supported
6CH @ 1080P: Supported
32CH @ CIF: Supported

Recording

Recording Modes: Manual / Schedule / Motion Detection / Alarm / VCA Trigger
Playback:
- 4CH @ 4K: Supported
- 16CH @ 1080P: Supported
- 32CH @ D1: Supported

Video Output

HDMI Output: 1 (Up to 4K 3840×2160 Supported)
VGA Output: 1 (Up to 1920×1080 Supported)
Dual Display: HDMI + VGA Simultaneous (Supported)

Audio

Audio Input: 1 (3.5mm)
Audio Output: 1 (3.5mm)

Alarm

Alarm Input: 4
Alarm Output: 6

Storage

HDD Interface: 4 SATA Ports
Max Capacity: Up to 8TB per HDD
Total Storage: Up to 32TB
File System: NTFS

Network

Network Interface: 2 × RJ45 Gigabit LAN (10/100/1000 Mbps)
Incoming Bandwidth: 400 Mbps
Outgoing Bandwidth: 200 Mbps
Remote Users: Up to 16 (Supported)
Protocols: TCP/IP, HTTP/HTTPS, DHCP, DDNS, PPPoE, FTP, RTSP, SMTP, NTP, SNMP, UPNP (Supported)

External Ports

USB Ports:
- 1 × USB 3.0 (Supported)
- 1 × USB 2.0 (Supported)
Serial Interface: RS485 / RS232 (Supported)

Electrical Specifications

Power Supply: DC 12V / 5A
Power Consumption: ≤ 40W (Without HDD)

Environmental Specifications

Operating Temperature: -10°C to +55°C
Humidity: 10% - 90% RH

Physical Details

Dimensions: 440 × 347 × 75 mm
Weight: Approx. 3.8 kg (Without HDD)
Weight (With Package): Approx. 5.5 kg

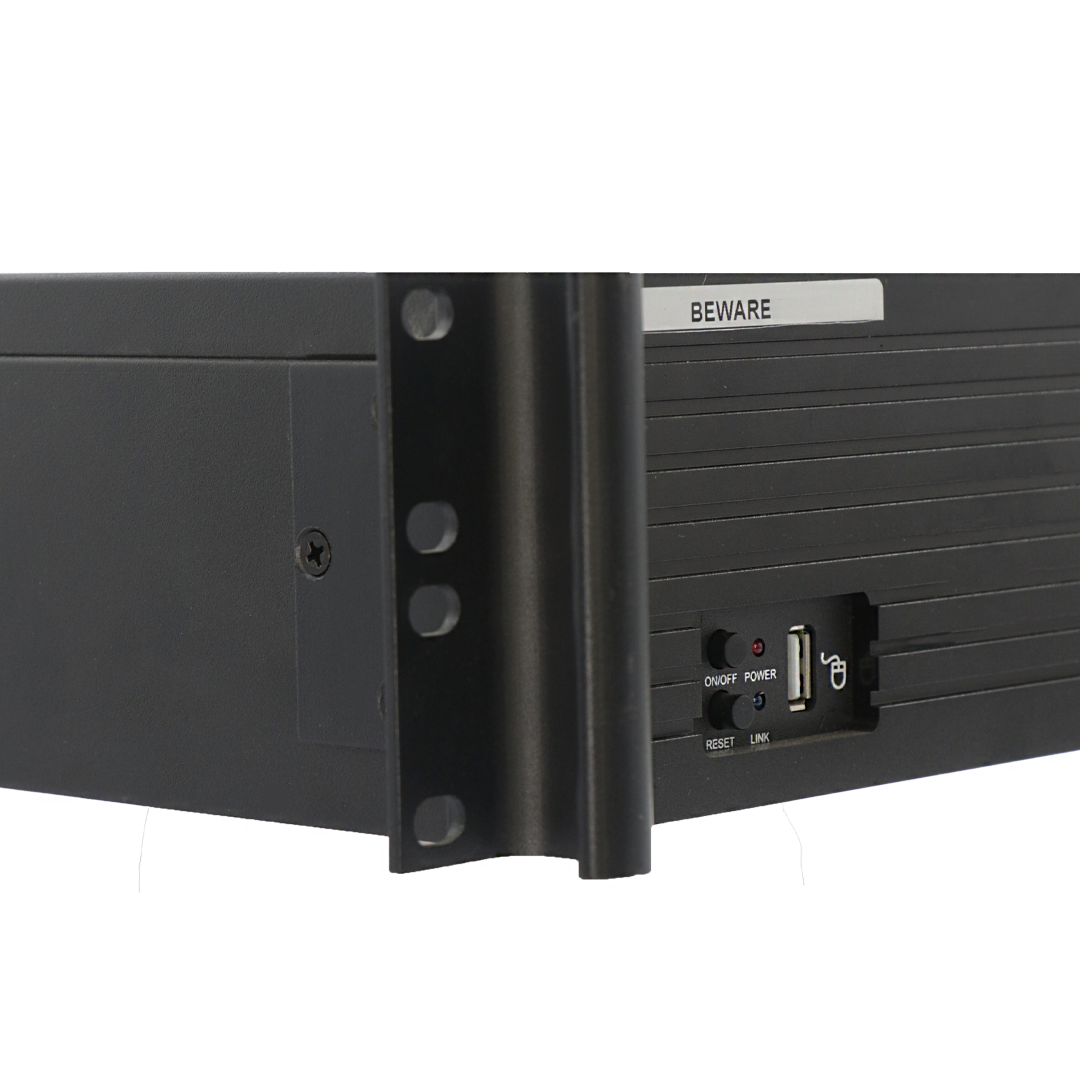

Installation Type: Desktop / Rack Mount
Chassis: 1.5U Metal Chassis
